Step-by-Step Blueprint-Only

This guide provides step-by-step instructions on how to set up a Blueprint-only project once you have installed the plugin.

Blueprint-only demo project download: [link].

1 - Defining Settings and Categories

To define a setting, in the Content Browser, right-click > Miscellaneous > Data Asset. Select between SF Bool Setting, SF Discrete Setting, SF Keybind Setting, or SF Scalar Setting based on your needs. All settings have some common fields, such as Setting Tag, Display Name, Description, etc. while each setting type also has type-sepcific fields to customize them. For example, the SF Scalar Setting data asset allows you to set the min value, max value, and the step size. All fields have tooltips detailing their functionalities.

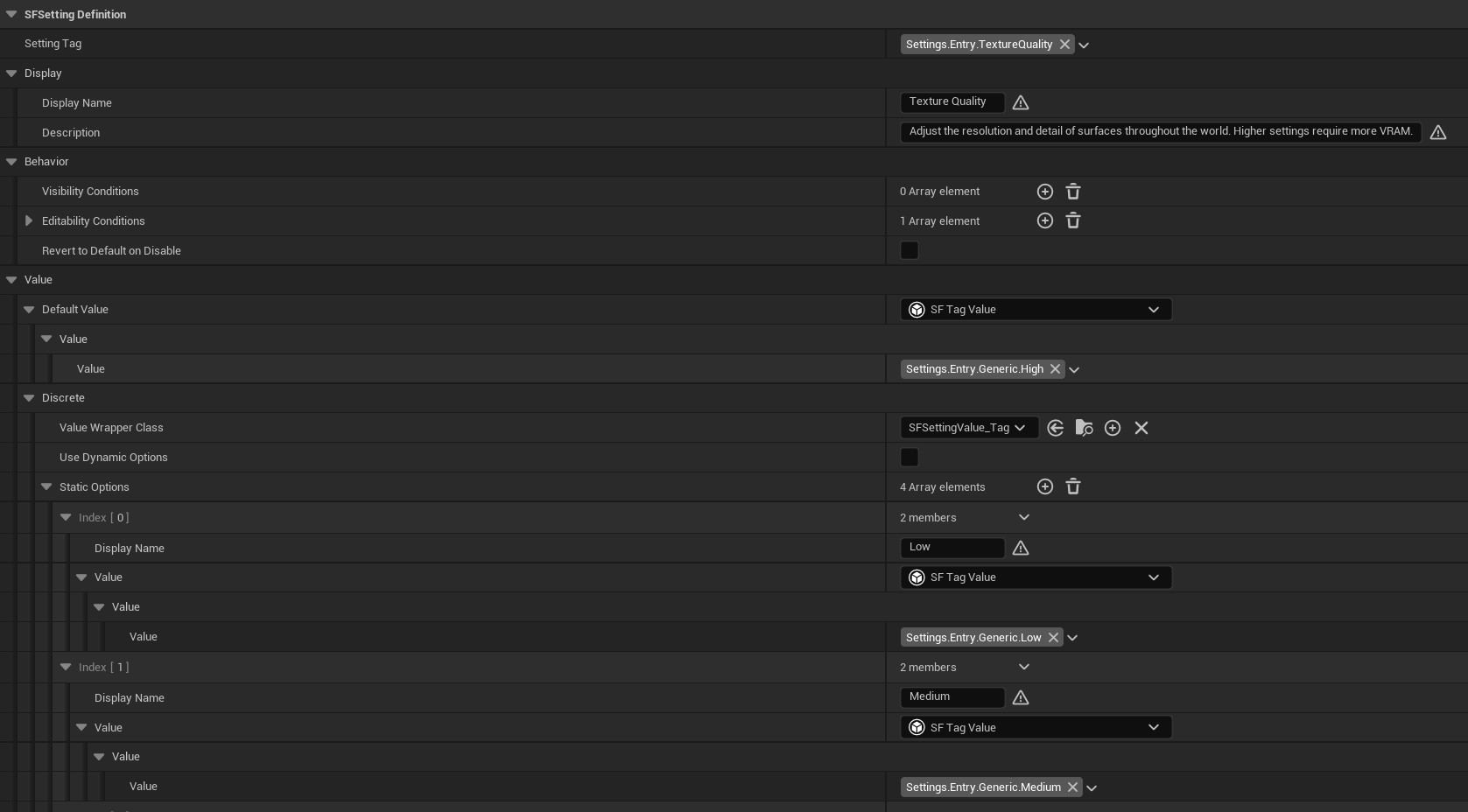

Notably, SF Discrete Setting (typically shown as a dropdown or a rotator button) allows for either static options defined at design time or dynamic options.
- If Use Dynamic Options is False, you can specify values by filling the Static Options array.
- If Use Dynamic Options is True, you have to specify an Option Source class (runtime object for generating options) and a collection of Determinant Setting Tags (settings whose value changes would trigger an options refresh).
- Their underlying data type (specified by Value Wrapper Class field) can be either Gameplay Tag (SFSettingValue_Tag), which works better for pre-defined static options, or strings (SFSettingValue_String), which works better for options generated at runtime.
- Further details about dynamic options are available in a section below.

To define a category, In the Content Browser, right-click > Miscellaneous > Data Asset and select SF Setting Category. Similar to setting definitions, a category has an indentifying Category Tag, and a Display Name.

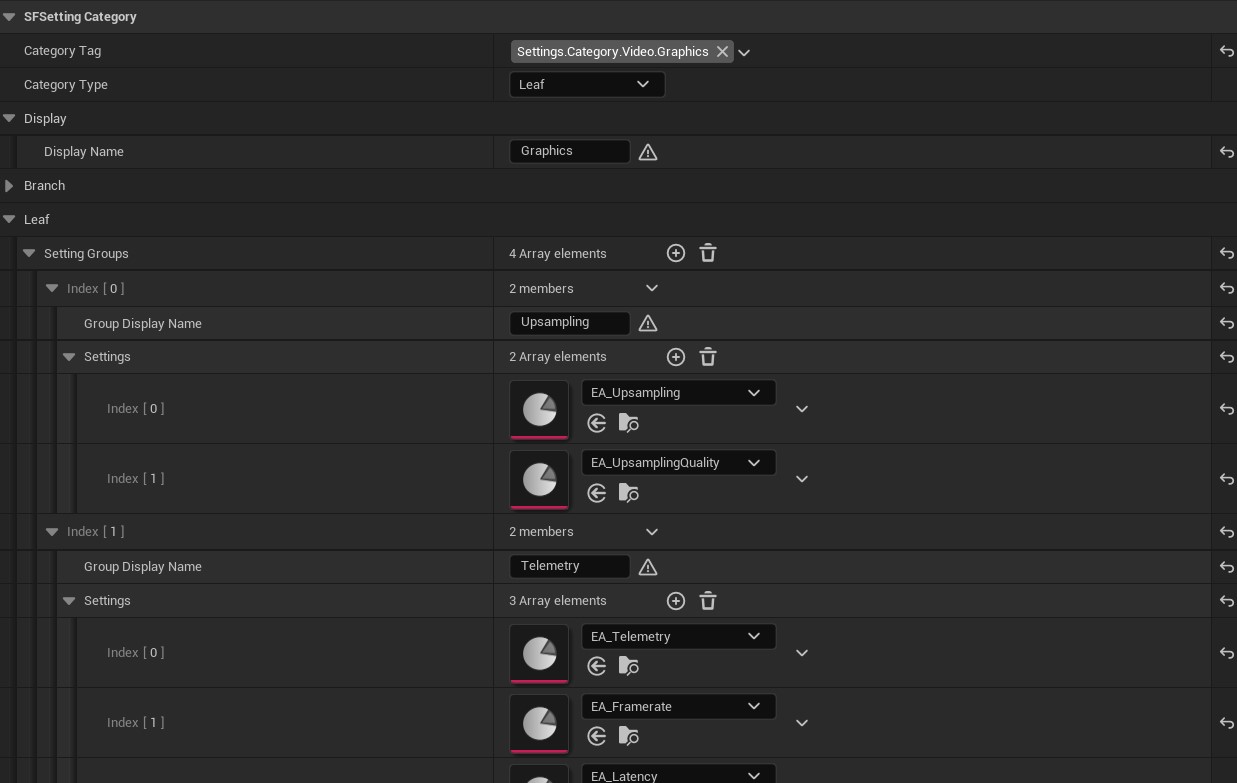

The Category Type field has 2 options: Branch or Leaf.
- A Branch category contains other sub-categories.
- A Leaf category contains setting definitions. You can specify Setting Groups, which are purely presentational groupings with a display name. You can also just add all your setting definitions in the Settings array if you do not want to use groups. In this case, setting entries are displayed all in the same group.

Lastly, to tie it all together, you need to specify a Settings Registry. In the Content Browser, right-click > Miscellaneous > Data Asset and select SF Settings Registry. The registry contains all your root categories. At initialization, the Settings Subsystem will traverse the categories down to the leaf level, gathering all setting definitions and load them asynchronously. In WBP_SettingsScreen, root categories are displayed as major tabs, and their subcategories are displayed as minor tabs.
In order for the Settings Subsystem to find your Registry, go to Edit > Project Settings > Settings Framework and assign your registry asset to the Settings Registry field.
- You may need to press Set As Default to prevent values from being reset between Editor sessions.
Now your setting definitions are all set.

2 - Displaying the Settings Screen UI on Viewport

If you have an existing project using Common UI, you'll need to push WBP_SettingsScreen onto your CommonActivatableWidgetStack and activate it (either automatically by Common UI or through calling ActivateWidget manually). If you are starting with a blank projects, here are the steps to set it up:

Make a widget blueprint of type CommonUserWidget and name it WBP_HUD. This will be added to our viewport and act as the main container for widgets in our UI.
In the WBP_HUD, add a CommonActivatableWidgetStack. Make it a variable and name it Widget Stack.
Make a blueprint of type PlayerController and name it BP_PlayerController. On Begin Play, set up some script to add WBP_HUD to the viewport and push WBP_SettingsScreen to its widget stack. Normally you would push WBP_SettingsScreen when the player performs an action to bring up the settings screen, but for the sake of simplicity, we'll set it up right at Begin Play since it is the only screen in this project.

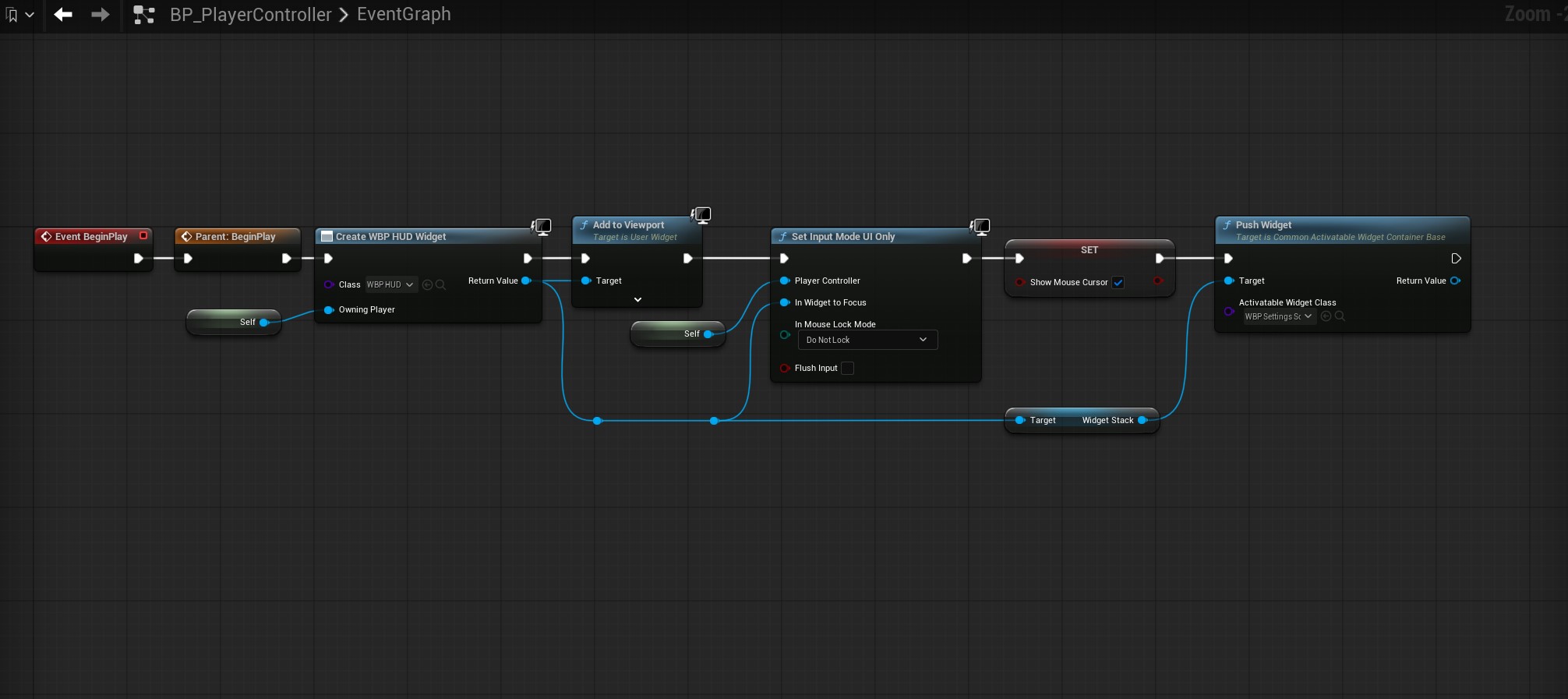

Adding WBP_HUD and WBP_SettingsScreen to Viewport in BP_PlayerController.

Make a blueprint of type GameModeBase and name it BP_GameMode. In its Details panel, assign our new BP_PlayerController as the new player controller class.
We can use this new game mode active by making it the game mode of a specific level, or the default gamemode of the project. Go to Edit > Project > Maps & Modes and set the Default Gamemode to our BP_GameMode.
For WBP_SettingsScreen to work correctly, we have to specify which component widgets it should use. Go to Edit > Project Settings > Settings Framework and assign the following:
- Root Tab Button Class: WBP_MajorTabButton
- Branch Tab Button Class: WBP_MinorTabButton
- Branch Tab Content Class: WBP_CategoryTab_Branch
- Leaf Tab Content Class: WBP_CategoryTab_Leaf
- Setting Group Widget Class: WBP_SettingGroup
- Setting Entry Widget Classes:
  - SFSettingDefinition_Bool -> WBP_SettingEntry_Checkbox
  - SFSettingDefinition_Discrete -> WBP_SettingEntry_Rotator
  - SFSettingDefinition_Key -> WBP_SettingEntry_Keybind
  - SFSettingDefinition_Scalar -> WBP_SettingEntry_Slider
- You may need to press Set As Default to prevent values from being reset between Editor sessions.

Configured Developer Settings in Project Settings.

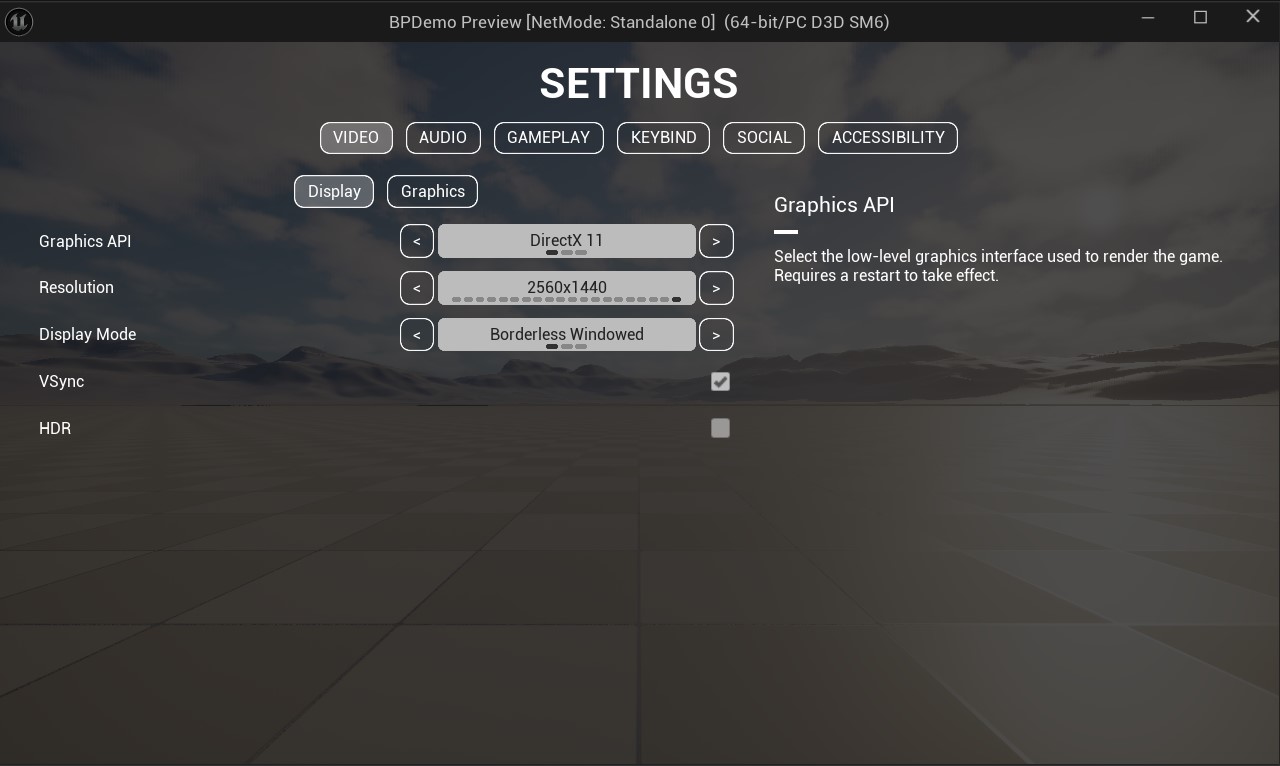

Now when we start the game, we'll see the settings screen, with all settings populated.

3 - Setting up Visibility and Editability Conditions

4 - Setting up Runtime Dynamic Options

5 - Setting up Reactive Settings

Common UI with Enhanced Input must be set up for the keybind widget and the built-in gamepad navigation to work. Here are the steps I took to set them up:

Go to Edit > Project Settings > Game > Common Input Settings and set Enable Enhanced Input Support to True. Restart the Editor when prompted.
In the Content Browser, right-click > Input > Input Action to make an Input Action blueprint and name it IA_UI_Confirm. Make another one and name it IA_UI_Back. These are our basic yes/no actions.
Make a blueprint of type CommonUIInputData and name it BP_InputData. In its Details panel, set Enhanced Input Click Action to the new IA_UI_Confirm and Enhanced Input Back Action to IA_UI_Back.
Go to Edit > Project Settings > Game > Common Input Settings and set Input Data to the new BP_InputData.
Optionally, on the same screen, you can set up controller data assets in Platform Input > Windows (or your platform of choice) > Default > Controller Data. Controller Data helps you assign input key values to icons, which Common UI will use to display prompts for input action on the UI.
Go to Edit > Project Settings > Engine > General Settings and set Game Viewport Client Class to CommonGameViewportClient.

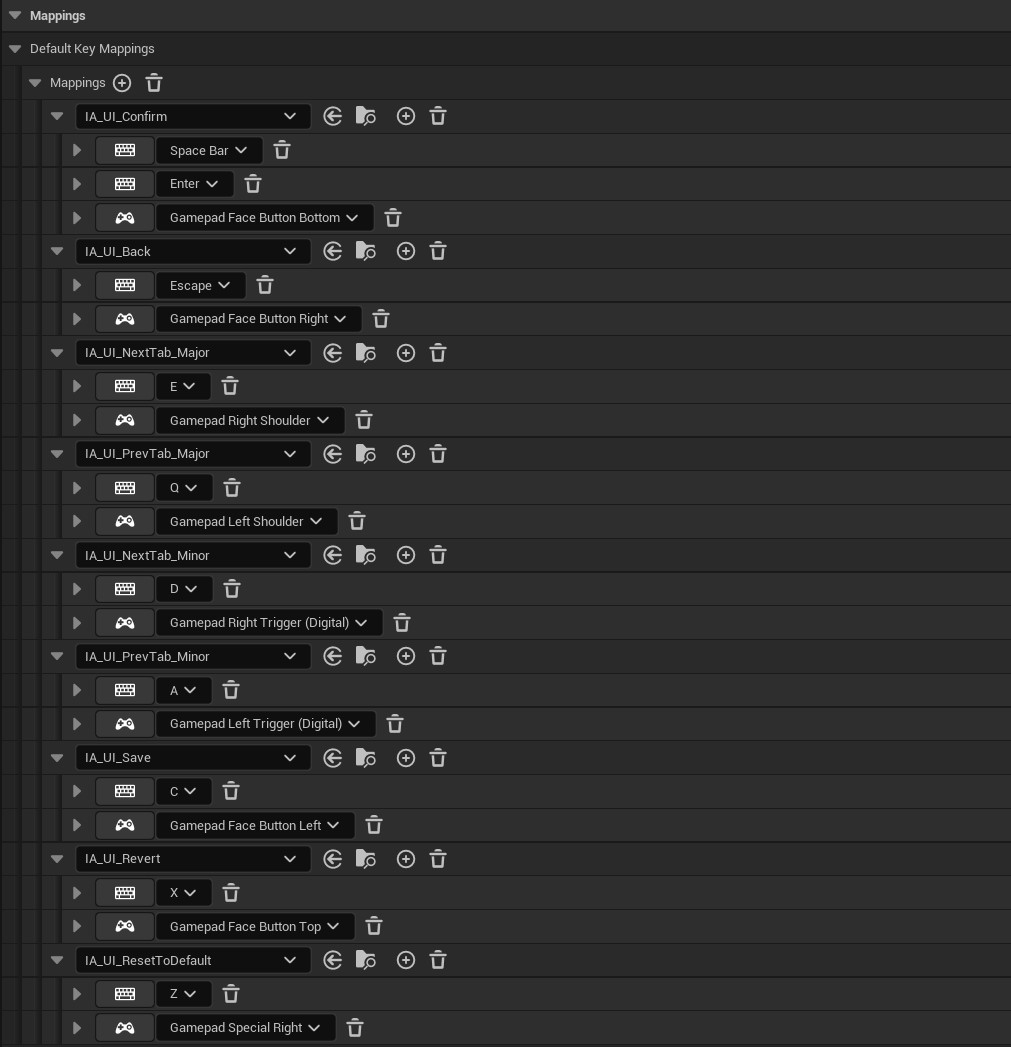

In the Content Browser, right-click > Input > Input Mapping Context to make an Input Mapping Context (IMC) and name it IMC_DefaultUI. In this blueprint, add to the Default Key Mappings > Mappings the yes/no input actions from before (IA_UI_Confirm and IA_UI_Back) as well as the input actions that came with the plugin (IA_UI_PrevTab_Major, IA_UI_NextTab_Major, IA_UI_PrevTab_Minor, IA_UI_NextTab_Minor, IA_UI_Save, IA_UI_Revert, IA_UI_ResetToDefault). Assign your desired input keys to them.

When using Enhanced Input, we usually want to activate/deactivate IMCs at runtime (for example, switching between gameplay and UI mappings). However, in this project, we only have the UI screen, so we'll make it the default IMC. Go to Edit > Project Settings > Engine > Enhanced Input and add the new IMC_DefaultUI to Default Mapping Contexts.
Now when we start the game, our assigned input keys should work to perform actions and action prompts should appear if controller data assets are set up.

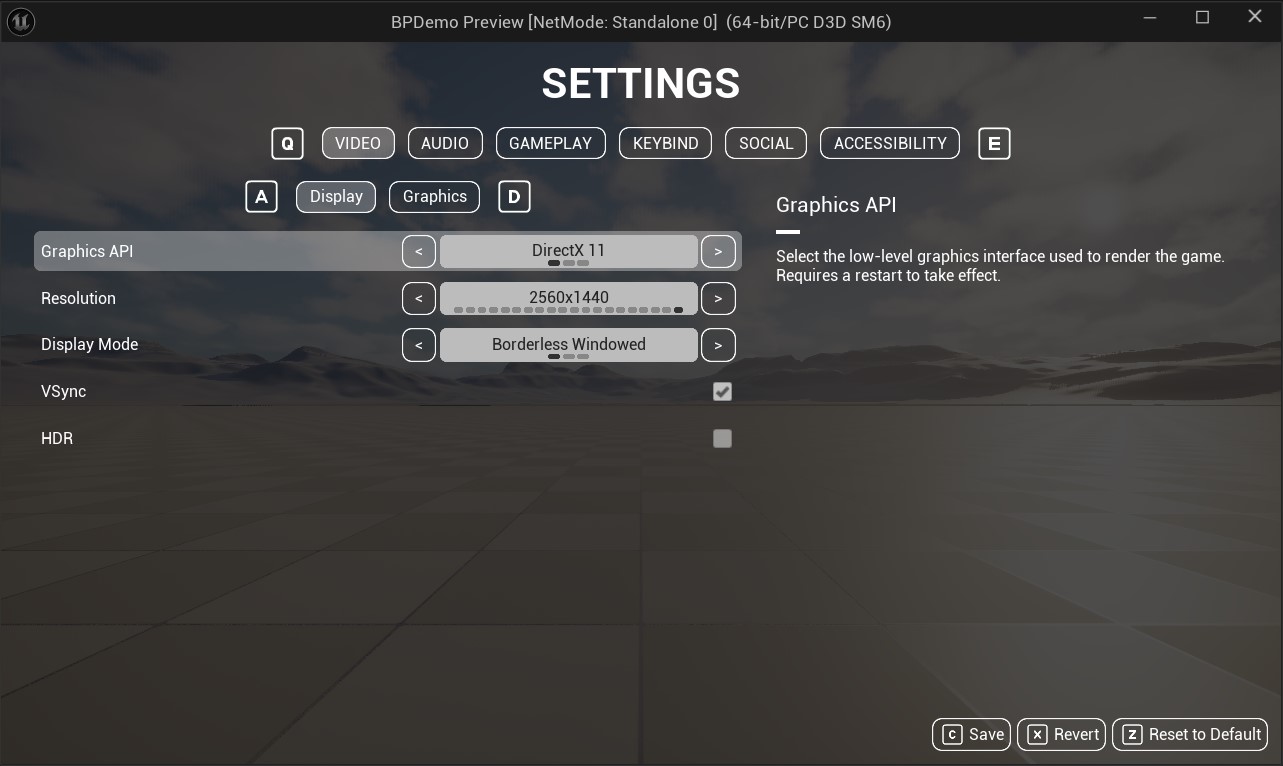

Settings screen with functional navigation.
